PIA610

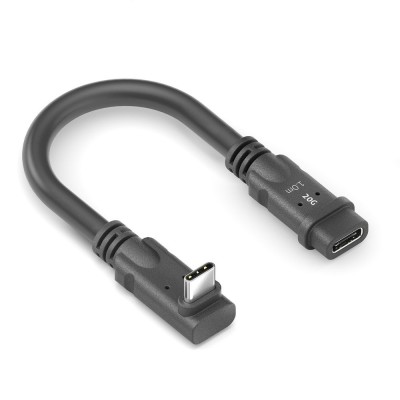

PureInstall MicroX4 - USB4 Gen2 USB-C 90° (Up/Down) M/F Portsaver, Passive

PureInstall MicroX4 USB4 Gen2 USB-C M/F 90° (Up/Down) Portsaver: Horizontal Routing for Space-Constrained AV Integration
This PureInstall MicroX4 type-C portsaver with angled connectors combines passive high-speed signal design with horizontally angled connectors for installation scenarios with limited clearance. The 90° USB-C male connectors – angled in up/down direction – enable efficient cable management behind rack-mounted systems, wall panels, or flush-mounted displays. The cable’s passive micro-coax construction supports high signal integrity without active chipsets, improving reliability over long distances. TLS locking compatibility ensures mechanical stability in fixed installations with potential movement or vibration. Suitable for high-throughput data, video, and Power Delivery, this cable selection is designed for applications ranging from rack-mounted hardware to BYOD environments and conferencing solutions.

• High-Speed Data Transfer: USB4 Gen2x2 supports data rates up to 20Gbps. The passive cable design ensures backward compatibility with USB 3.x and 2.0 devices, enabling seamless integration into existing systems without the need for active electronics or repeaters.
• Enhanced Signal Integrity: Silver-plated copper (SPC) conductors reduce electrical resistance and are optimised for high-frequency transmission. This ensures stable signals over longer distances and reduces jitter in high-resolution AV applications.
• Horizontal 90° USB-C Connectors: USB-C male 90° (Up/Down) to USB-C female connectors enable tight horizontal routing in racks, podiums, or behind flush-mounted displays.
• Electromagnetic Interference Protection: The micro-coaxial design with full shielding and precise impedance control, is engineered to minimise electromagnetic interference (EMI) in electrically noisy environments such as power lines or RF sources.
• Power and Video via Single Cable: Supports USB PD 3.1 up to 240W EPR (Extended Power Range) with 48V / 5A, making it ideal for powering demanding devices such as mini-PCs or docking stations. DP Alt-Mode supports video resolutions up to 8K at 30Hz for high-performance display setups.

Practical Solution for Combined Signal and Power Transmission
This MicroX4 USB-C portsaver with angled connectors is the ideal choice for AV professionals requiring high data throughput, unified data, video and power transmission as well as compact cable paths in horizontally restricted installation scenarios. Its passive design and compatibility guarantee compatibility, even with devices not yet on the market.

Features

• Passive USB4 Gen2x2 – 20Gbps data transmission, downward compatible
• Silver-plated copper (SPC) conductors for lowest possible resistance
• USB-C 90° (Up/Down) to USB-C female
• Micro coax data transmission for improved noise rejection, greater flexibility and range
• USB PD 240W 48V / 5A EPR up to 8K 30Hz (dependant on cable being connected)
