PI6610-020

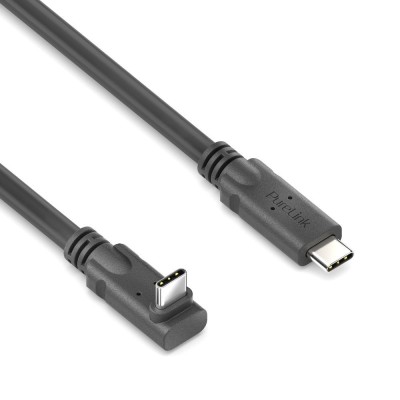

PureInstall MicroX4 - USB4 Gen2 USB-C 90° (Up/Down) Cable, Passive

PureInstall MicroX4 USB-C / USB-C 90° (Up/Down) Cable: Combined Data, Video and Power for ProAV Integration
This PureInstall MicroX4 type-C cable with vertically angled connectors combines passive high-speed signal design with vertically angled connectors for installation scenarios with limited vertical clearance. The 90° USB-C male connectors – oriented in upward or downward direction – enable efficient cable management behind rack-mounted systems, wall panels, or flush-mounted displays. The cable’s passive micro-coax construction supports high signal integrity without active chipsets, improving reliability over long distances. TLS locking compatibility ensures mechanical stability in fixed installations with potential movement or vibration. Suitable for high-throughput data, video, and Power Delivery, this cable selection is designed for applications ranging from rack-mounted hardware to BYOD environments and conferencing solutions.

• High-Speed Data Transfer: USB4 Gen2x2 supports data rates up to 20Gbps. The passive cable design ensures backward compatibility with USB 3.x and 2.0 devices, enabling seamless integration into existing systems without the need for active electronics or repeaters.

• Enhanced Signal Integrity: Silver-plated copper (SPC) conductors reduce electrical resistance and are optimised for high-frequency transmission. This ensures stable signals over longer distances and reduces jitter in high-resolution AV applications.

• Vertical 90° USB-C Connectors: USB-C male to USB-C male connectors angled upward/downward enable tight vertical routing in racks, podiums, or behind flush displays. TLS locking compatibility adds connection security in permanent installations.

• Electromagnetic Interference Protection: The micro-coaxial design with full shielding and precise impedance control, is engineered to minimise electromagnetic interference (EMI) in electrically noisy environments such as power lines or RF sources.

• Power and Video via Single Cable: Integrated e-markers support USB PD 3.1 up to 100W SPR with 20V / 5A, making it ideal for powering demanding devices such as mini-PCs or docking stations. DP Alt-Mode supports video resolutions up to 8K at 30Hz or 4K at 144Hz for high-performance display setups.

Practical Solution for Combined Signal and Power Transmission
This MicroX4 USB-C cable with vertically angled connectors is the ideal choice for AV professionals requiring high data throughput, unified data, video and power transmission as well as compact cable paths in vertically restricted installation scenarios. Its passive design and compatibility guarantee compatibility, even with devices not yet on the market.

MicroX4 Family - A Quantum Leap in Connectivity
As USB-C continues to define connectivity across all devices, the PureInstall MicroX4 family sets itself apart with precision-engineered components and state-of-the-art innovations. Designed to meet the highest possible standards of connectivity, it ensures reliable performance across the full spectrum of power, audio, video, and data demands –at distances previously thought impossible.

For a long time, passive twisted-pair cabling has been regarded as the backbone of cable technology. It is reliable, well understood, and widely used across multiple industries. However, we have now reached a digital glass ceiling that limits USB-C range and reliability to very short distances. Micro coax technology is the key to overcoming these limitations, offering superior signal attenuation and reduced crosstalk, as well as far more robust signal transmission with minimal reflection or loss.

The physical characteristics of coaxial cabling provide additional benefits. Its structure allows for a significant reduction in copper usage, making the final product far more supple to the touch while also being highly resistant to bending – enhancing durability.

It is no exaggeration to say that micro-coax cables are ushering in a new era of connectivity.

Features

• Passive USB4 Gen2x2 – 20Gbps data transmission, downward compatible
• Silver-plated copper (SPC) conductors for lowest possible resistance
• USB-C male to USB-C male 90° (Up/Down), compatible with TLS locking
• Micro coax data transmission for improved noise rejection, greater flexibility and range
• E-marker, USB PD 100W SPR (20V / 5A), DP Alt-Mode up to 8K 30Hz / 4K 144Hz
