RLXT3

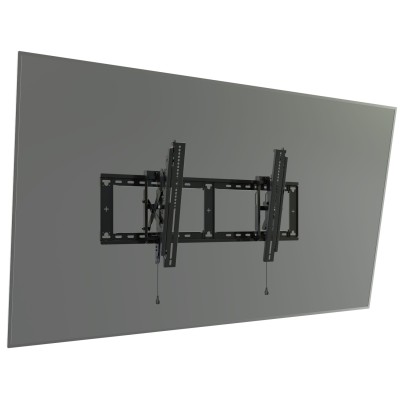

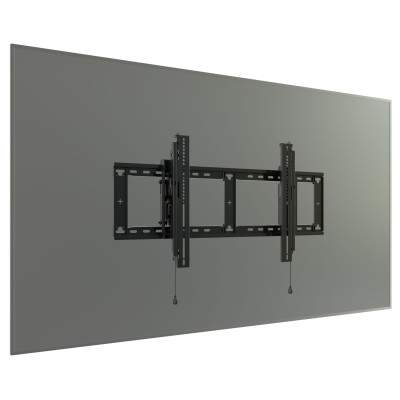

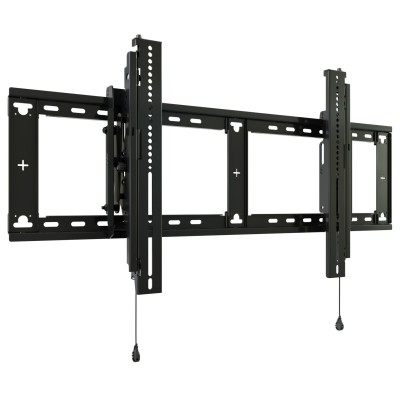

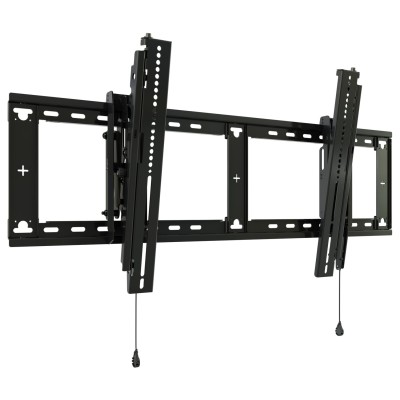

The Fit series RLXT3 is a large extending tilt display wall mount for 43” to 85” typical display sizes and supports mounting patterns up to 863 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 150 lbs (68 kg), minimum 2.67” (68 mm) depth up to 6” (152 mm) when fully extended away from the wall, 10° forward and back tilt, and UL and TUV safety standard approvals.

- Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
- The display can be tilted 10° forward or back to set the optimal viewing angle – especially useful for large screens
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 863 x 450 mm
- Rigid wall plate supports up to 150 lbs (68 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures the display to the wall plate and allows perfect positioning of the screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent locking option to secure the screen in place with a padlock or steel cable (not included)
- UL and TUV safety standards approved
