STS680

Peerless-AV's SmartMount® Universal Scissor Wall Mount (STS680) is the ideal solution for UC/VC applications and recessed wall installations. Designed for convenience, it provides easy access to components stored behind the display. The mount's extendable adaptors allow the display to be pulled up to 325mm from the wall and locked securely in place once installation or maintenance is complete. With its Hook-and-Hang™ feature, installation is quick and simple, while the open access design offers maximum wall space flexibility for outlets and in-wall boxes. Post-installation leveling and side-to-side adjustability ensure the display is perfectly aligned in any corporate, digital signage, or hospitality environment.

This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.

Product Features

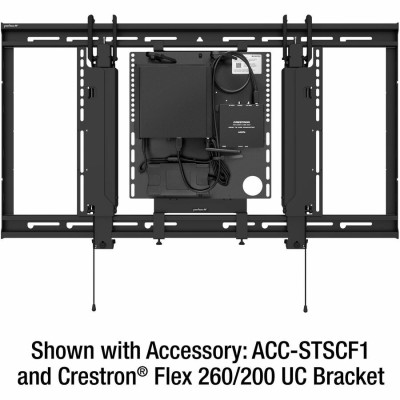

- Compatible with the Crestron® Flex UC Brackets with ACC-STSCF1 accessory

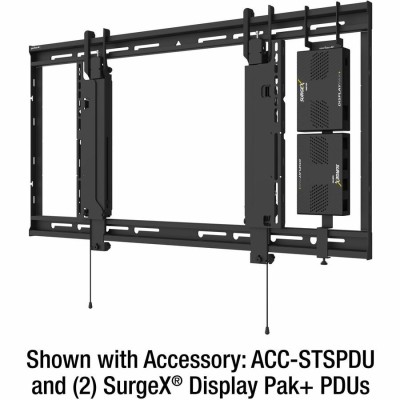

- Compatible with SurgeX® DisplayPak+ with ACC-STSPDU accessory
- ADA compliant when used with displays 56mm (2.2") thick or less
- 46-325mm (1.8"- 12.8") display extension allows for post-installation servicing and component storage behind display
- Universal mount fits displays with mounting patterns 200 x 100 to 1000 x 400mm (1000 x 600mm with included bolt-on extenders)

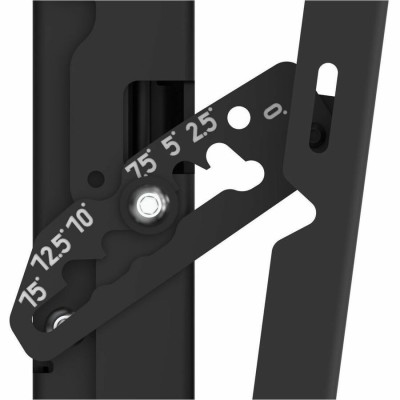

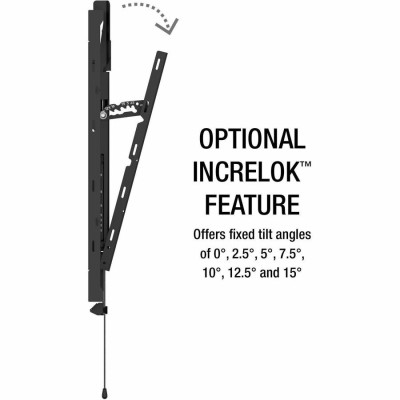

- Optional IncreLok™ feature offers fixed tilt angles of 0°, 2.5°, 5°, 7.5°, 10°, 12.5° and 15°
- ± 12mm (1/2") of post-installation leveling
- 2° of plumb adjustment to keep displays level on uneven walls
- Display is easily installed by a single person with the Hook-and-Hang™ feature
- Open access provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes
- Post-installation leveling and side-to-side adjustability features allow fine-tuning of the mounted display for the perfect display positioning

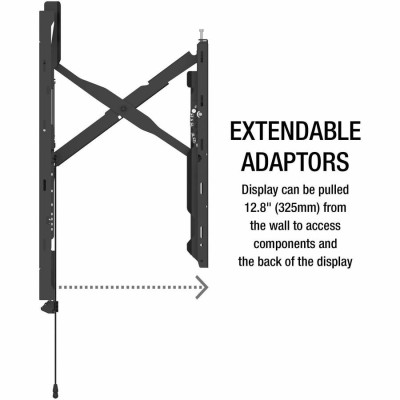

- Display can be pulled 325mm (12.8") from the wall to access components and the back of the display with the extendable adaptors

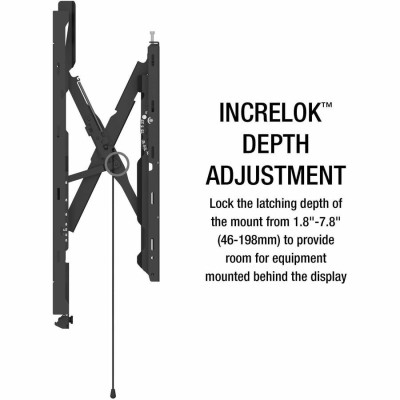

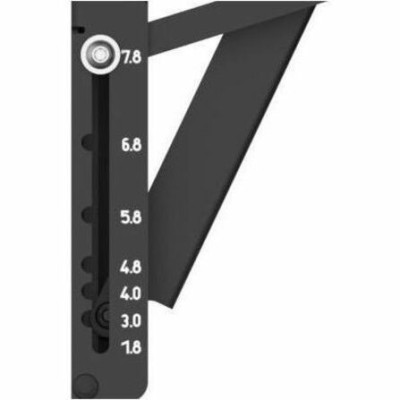

- IncreLok™ depth adjustment technology allows the user to lock the latching depth of the mount from 46-198mm (1.8"-7.8") to provide room for equipment mounted behind the display
