FRA

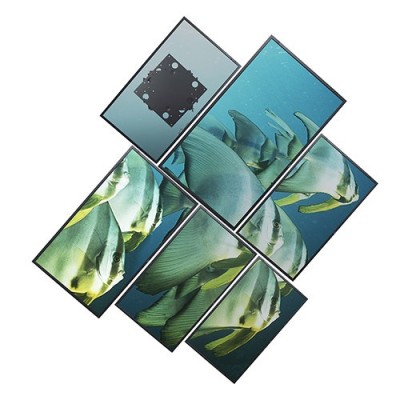

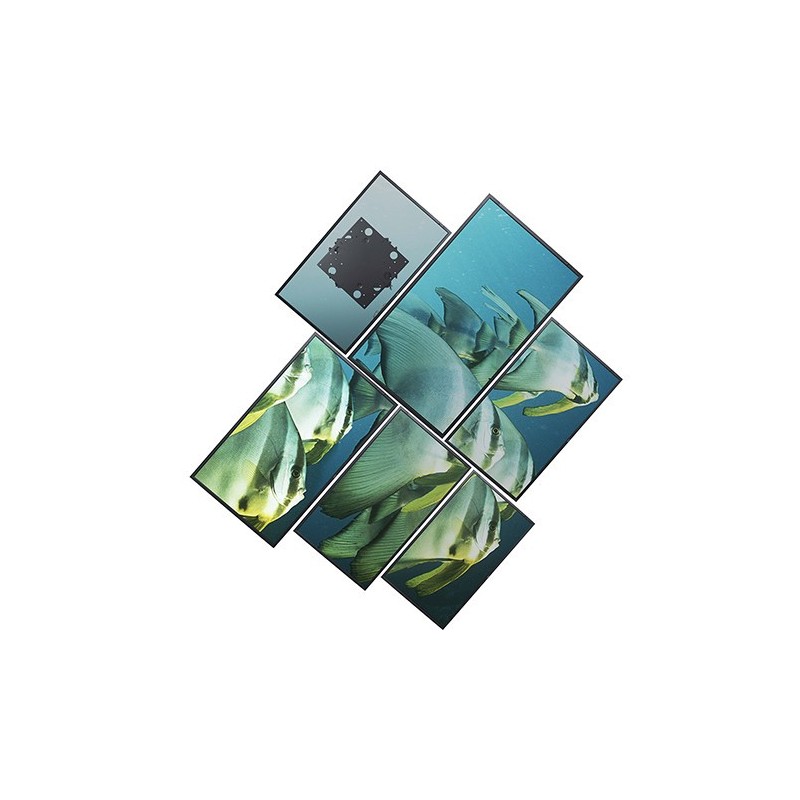

The Freestyle Rotation Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys™ or Fusion® mounts.

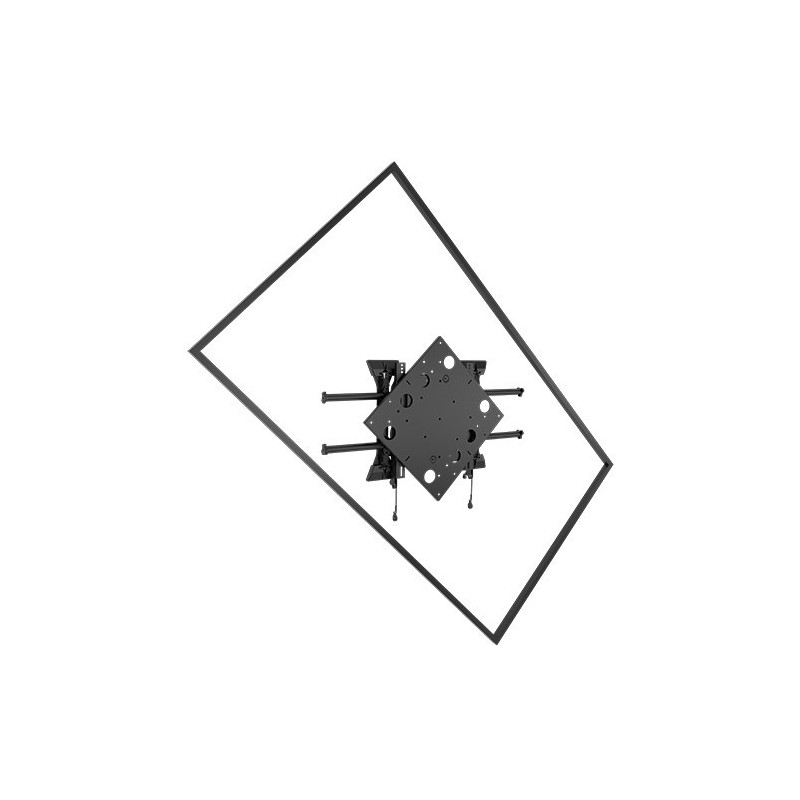

FRA shown in picture with Fusion® mount.

Note: Please see the selection guide in the Resources tab to ensure visual coverage of mount at all angles.

Mounting pattern can be 600 x 400 if using FHB5036 for M6 screws or FHB5037 for M8 screws.
- Positive lockouts at 15 degree increments
- Provides 90 degrees of rotation for 360 degrees of range
- Overlapping displays (with Fusion® FCADA) adds another level of customization and creativity
- Micro-adjustment (with ConnexSys™)
- Weight capacity when used with ConnexSys™: 125 lbs (56.7 kg)
- Weight capacity when used with STMS1U, MTMS1U: 55 lbs (24.95 kg)
- Use with Fusion® wall, ceiling and freestanding mounts
- Positive lockouts at 15 degree increments
- Typical Screen Size: Greater than 40” (1016mm) using MTMS1U or STMS1U: 19” minimum display height at 45°. Greater than 55” using ConnexSys: 27” minimum display height at 45°

Link to matching supports:
- ConnexSys Series for Videowall
- Fusion series with single mount
