999-9950-001W - RoboSHOT 20 UHD White
999-9950-001W - RoboSHOT 20 UHD White
999-9950-001W - RoboSHOT 20 UHD White
999-9950-001W - RoboSHOT 20 UHD White
999-9950-001W - RoboSHOT 20 UHD White

999-9950-001W - RoboSHOT 20 UHD White

Disponibile per ordine

Reference: VAD-0227-W


Supplier reference 999-9950-001W

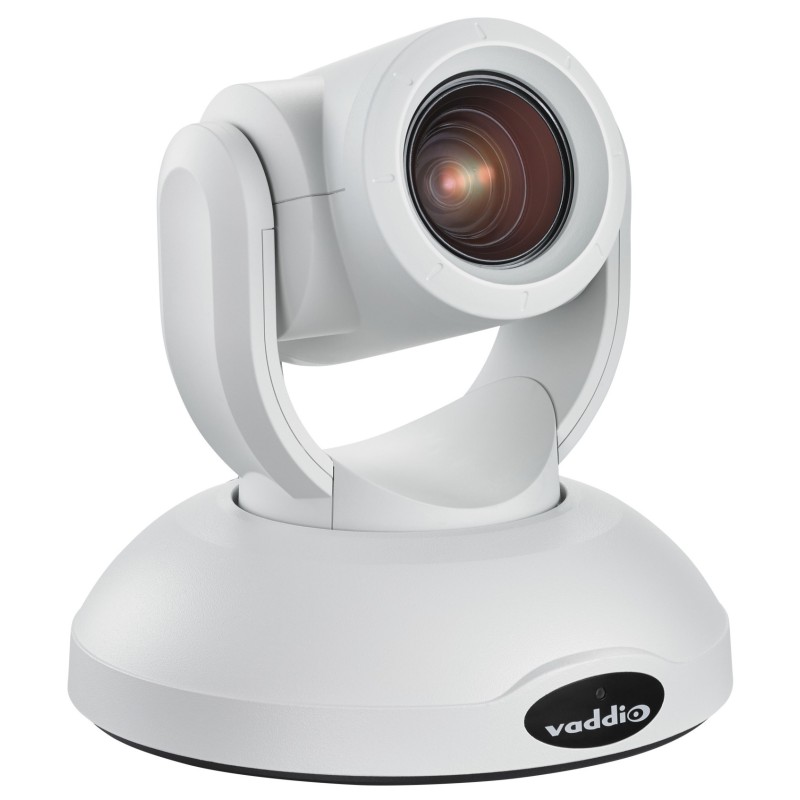

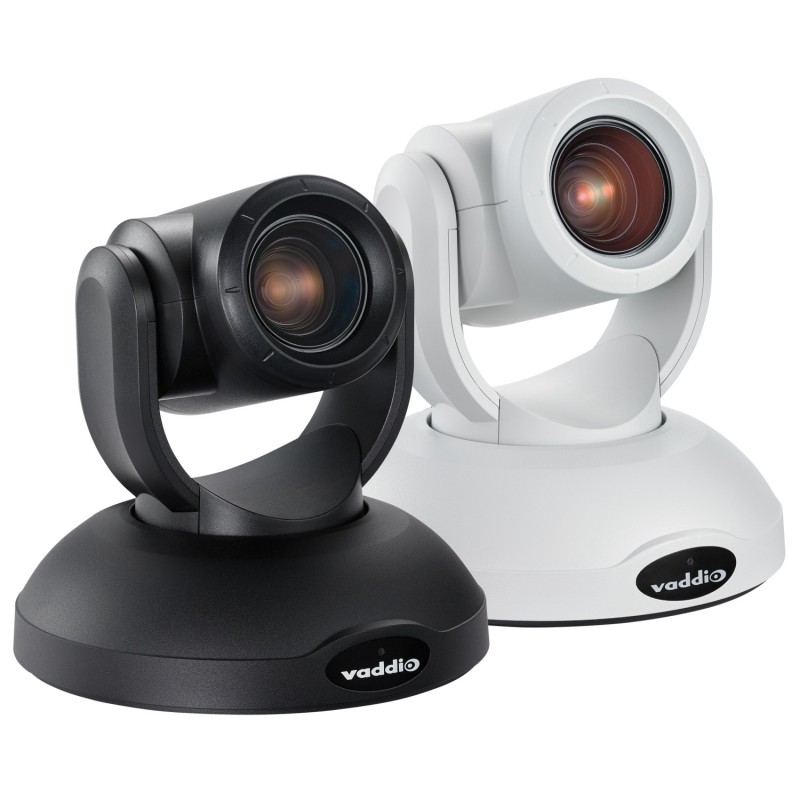

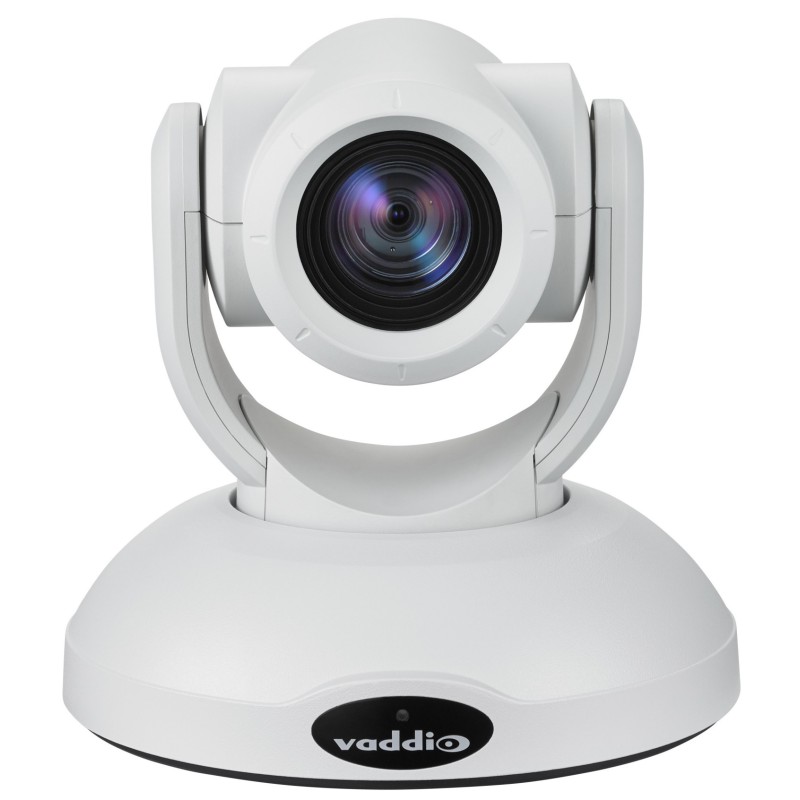

Vaddio RoboSHOT 20 UHD PTZ camera White


Professional A/V presentation and conferencing UHD (ultra high definition) camera with pristine image quality. Simultaneous 3 Gb/s HD-SDI, HDMI, HDBaseT, and IP (H.264) streaming. Recommended for large meeting rooms, lecture halls, and houses of worship.

Key Features:
- Back-illuminated 9.03 Megapixel, ultra high definition 1/2.3-type sensor delivers native 2160p/30 (3840 x 2160) video
- Horizontal field of view 74° (wide) to 4.8° (tele) at 20x
- Imaging and performance comparable to 3-chip cameras
- Precise pan and tilt movements from 0.35° to 120° per second

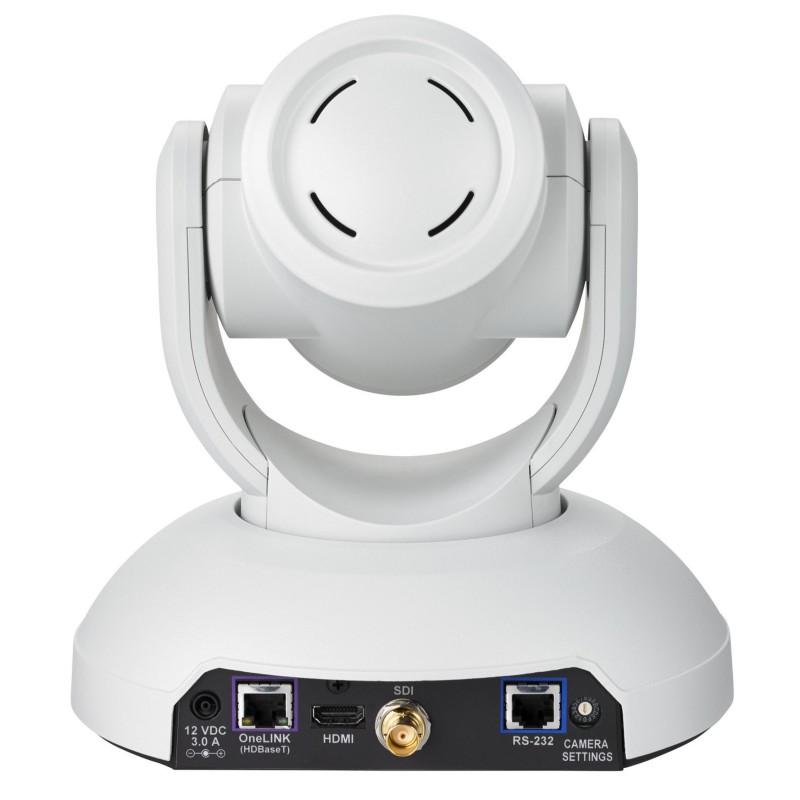

- Simultaneous HDMI, HDBT, HD-SDI, and IP streaming outputs
- Presenter-friendly IR remote control
- Administrative control via the web interface

Ultra HD (4K) PTZ camera with pristine image quality and outstanding low-light performance. Enterprise-class features include administrative control and remote operation via web interface and IP streaming. Designed for use in medium to large spaces this powerful UHD camera is perfect for higher education classrooms, corporate broadcasting, and houses of worship.

The total zoom range of 20x: 12x optical zoom lens with a seamless transition to 1.67x digital zoom. 1/2.3-type, high-speed, low noise, back-illuminated CMOS sensor with 9.03 total megapixels yields native UHD 2160p/30 (3840 x 2160) video images without scaling.

With a 74-degree wide horizontal field of view and built-in CCU with browser configuration, the RoboSHOT 20 UHD provides great flexibility in a variety of applications including video production, live events, lecture capture, and conferencing.

This Package Includes:
- RoboSHOT 20 UHD PTZ camera (white)
- Quick-Start Guide
- 12V power supply with AC cord set(s)

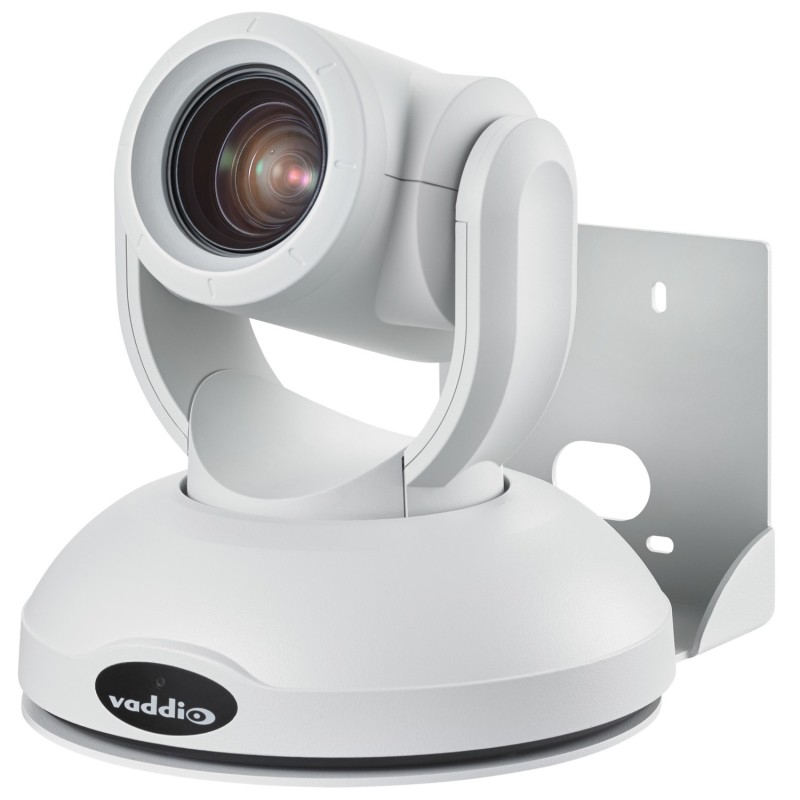

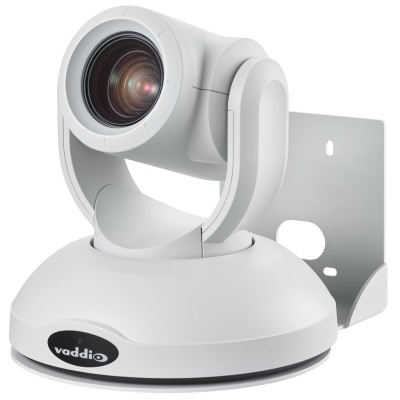

- Thin Profile Wall Mount (white) with mounting hardware and installation manual
- Vaddio IR Remote Commander
- EZCamera RS-232 Control Adapter

36 months return to base
Camera Type
Control Method
IR Remote - Joystick - RS232 - Telnet - Touch Screen - Web UI
Estimated Room Size
Large Conference Room - Large Venue - Small Conference Room
Lens and Horizontal Field of View
74.0° Wide End to 4.8° Tele End
Auto - Manual
Auto - Manual
Image sensor
1/2.3-type Exmor® CMOS
Minimum Illumination
3 Lux (F1.8)
Output Ports
3G SDI - HDbT - HDMI - IP Streaming
Pan and Tilt Range
Pan: ±160° - Tilt: +90° to -30°
Pan and Tilt Speed
0.35°/sec to 120°/sec
8.93 Megapixel (9.03 Total MP)
Power Supply Type
Local Power - OneLINK - PoE++
Solution Type
Camera Only
Top Resolution
2160p 29.97
White Balance
Auto - Manual - One Push
Zoom Range
Greater than 19X
