PAC527LFCW

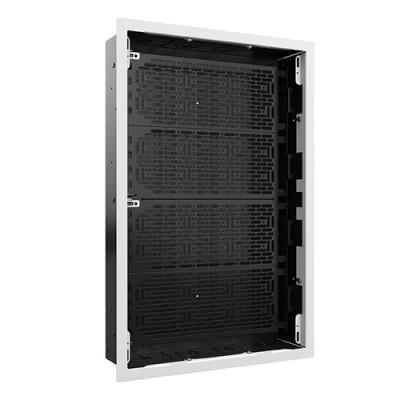

The new PAC527LFCW now includes two large tool-free Lever Lock™ plates for quick installation of AV equipment and efficient servicing of the system. Lever Lock™ plates can be mounted on four different levels to easily organize and layer components within the in-wall box. The PAC527LFCW also includes a paintable white flange and cover to blend into any space aesthetics.

Key Features

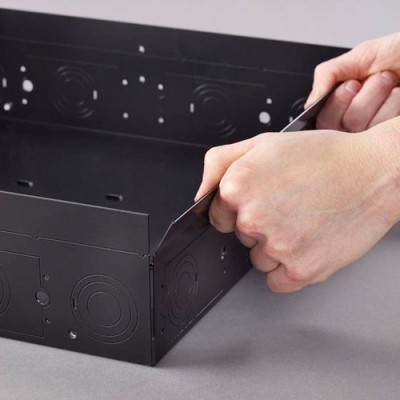

- Multiple depth break away edge allows compatibility with standard 3.5" stud and 2.5" stud bays (89 or 64 mm)
- Provides a larger, easy-to-organize space to accommodate AV equipment - 22" (559 mm) tall
- Pre- and post-construction installation options
- Knockouts for single gang outlets and 1 ¼”, 1", and ½" conduit
- Unmatched small device mounting flexibility built-in, with patented Lever Lock™ plates
- Patented universal hole pattern simplifies mounting of small devices
- Includes PACL2 Lever Lock™ plates mountable at four different depths in four different locations
- Paintable white flange and cover to blend in any environment
- Allows for AV devices to be mounted in advance before terminating cables on site

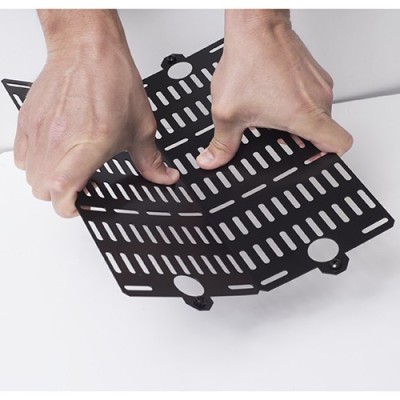

- PACL2 plate can be snapped in half to create two smaller sections
- Printable backplane template for planning purposes
- Additional PACL2 Lever Lock™ plates can be purchased separately for even more mounting options
- For electrical safety, Lever Lock™ plates are black zinc plated which allows them to be grounded to the in-wall box via the spring-loaded lever
- Enclosure is UL 2416 Listed for installation of AV, IT & Communication Technology
