AS3A100

Complete your AV system installations with this Installer-Inspired camera shelf for use with Tempo Flat Panel Wall Mount Systems.

Key Features:
- The camera shelf is 6” (152 mm) and has a 3.28” (83 mm) depth adjustment slot to facilitate placement of the camera using ¼”-20 screw.
- Fits most cameras with a ¼”-20 tripod mounting hole.

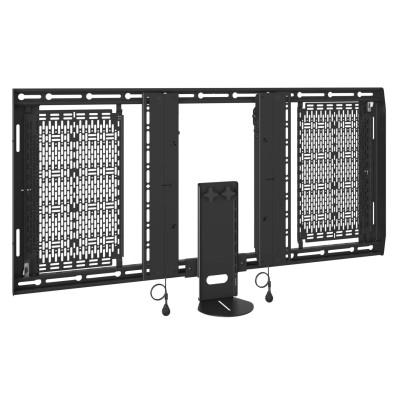

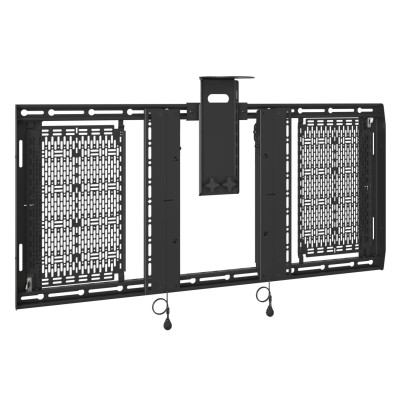

- Quick and easy installation. The camera shelf glides and locks into place on the top or bottom rail of the - Tempo Flat Panel Wall Mount System using strut channel nuts with captive screws.
- Lateral shift allows you to position the camera shelf wherever you need it along the wall plate mounting rail.
- Toolless height-adjust knobs allow 6.27” (159 mm) of travel to easily position the camera shelf at the right height above or below the display.
- Camera shelf can be installed between 12.7" (323 mm) to 28.26" (718 mm) of Tempo FP Wall Mount System center line.*
- Window openings and slots along both sides of the vertical bracket facilitate cable management.
- Weight capacity of 15 lbs (6.8 kg).

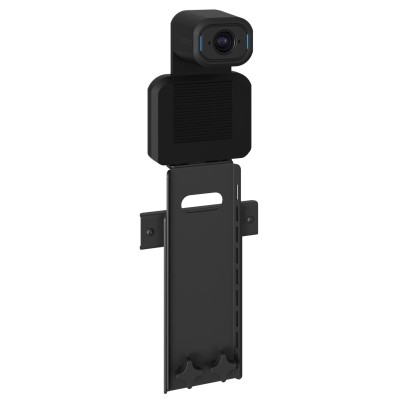

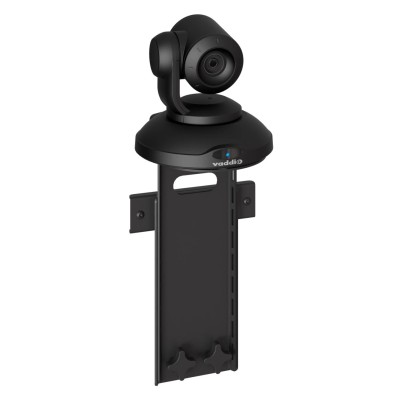

- Includes mounting bracket for Vaddio IntelliSHOT and ConferenceSHOT ePTZ cameras.
- Ships practically fully assembled! Just screw the shelf to the vertical bracket.

*For display size clearance details please refer to the Technical Drawing. Dimensions and specifications dependent on the application use case.
